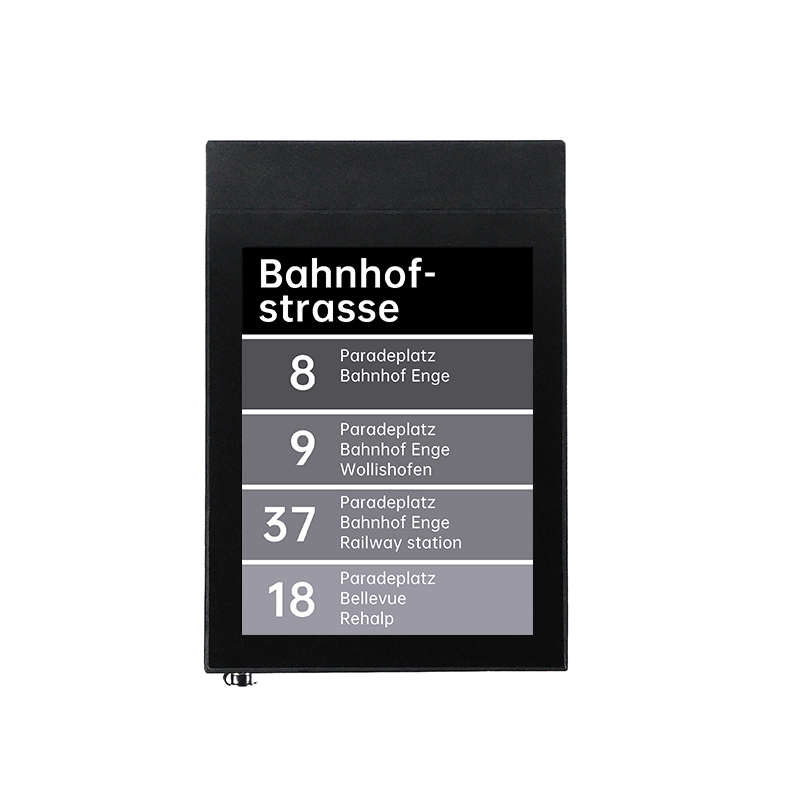

S133EC-O 13.3 Inch E-Paper Bus Stop Signage
Rugged for Outdoor Use
S133EC-O E paper bus stop adopts a 13.3-inch B/W EPD. Compared with traditional paper bus stop signs, it is made of electronic paper with very low power consumption and can continue to display content even when there is no power supply at all. This product has a very good design for outdoor applications, the content on the screen can be seen even under strong sunlight, with waterproof protection. It can be applied as information display screens in public areas such as bus stops, airports, and subways, suitable for building smart transportation systems.
- Paper-like display
- Visible in sunlight day & night
- IP65 waterproof design
- Powered by battery
- Place and play setup
- No wiring hassle
- Ultra-wide view
- Powered by external solar panels
- Integrated NFC and Bluetooth
- Fully customizable for business solutions
S133EC-O ePaper Bus Stop Sign Video
 |
13.3″ Paper-like Display, Clear in the Day This E paper bus stop of model S133-EC-O smart bus stop signage, delivers a true paper-like display in the outdoor environment, clearly visible and glare-free even in direct sunlight. Its resolution of 1600 x 1200 pixels lets you show more details on the e-paper screen, bringing more brilliant content to your advertising. |
||||
|
Visible in Outdoor Strong Light Traditional digital screens are usually unable to display properly because of the intense flare in outdoor situations. With e paper bus stop sign, passengers can get vehicle information and details on the screen without missing the bus signs and warnings. |
 |
||||
|
 |
IP65 Weatherproof for Harsh Climates The ePaper bus stop is engineered for outdoor use with IP65 weatherproof design. It allows the unit to stand in harsh climates from -15℃ to 65℃. |
||||
|
Incredibly Outdoor Display, Visible in Night Backed by 0-100% smart backlight feature, the unit is able to automatically adjust the display brightness by ambient lighting, delivering better and clearer image even in the night. |
Powered by Battery & Solar Panel Designed for outdoor use, the digital bus sign is surely powered by outdoor energy apart from built-in battery. Just connect it to a solar panel for non-stop working, without worrying about power outrage. |
||||
|
Energy Efficiency With its energy-saving capacity and its large battery, a full battery is able to last for 18 hours without charging. The power consumption for image refreshment only takes 3.24 watt. Surely, you may connect it to a socket for non-stop display.
|
Made for Business Solutions The digital signage is highly customizable. Product profile, RAM and ROM, etc. we provide highly customizable plans for your business. Just provides your needs, and we get into the details for further cooperation, and deliver the products you want.
|
|
Display |
Size |
Color options |
|
13.3 inch |
Black/White, 16 levels of greyscale |
|
|
Display technology |
DPI |
|
|
E-paper |
150 |
|
|
Resolution |
|
|
|
1600 x 1200 |
|
|
|
Dimensions
|
Width |
Weight |
|
375 mm |
Approx. 8 KG |
|
|
Depth |
Shell Material |
|
|
250 mm |
Black Metal |
|
|
Height |
Buttons |
|
|
55.9 mm |
POWER, UP, DOWN, RESET |
|
|
Connectivity |
WLAN |
Bluetooth |
|
2.4G (IEEE802.11b/g/n) |
Support Bluetooth 4.0 |
|
|
Power & Charge |
Power supply mode |
Working Power (updating) |
|
Power adapter/ Solar power supply (Optional) |
≤3.5W |
|
|
Standby Power (Non-updating） |
Shutdown Power |
|
|
≤0.01W |
≤0.001W |
|
|
|
Image |
|
|
JPG, BMP, PNG |
||
|
Operating Environment |
Storage temperature |
Operating temperature |
|
-25-70℃ |
-15-65℃ | |
|
Weatherproof |
Anti-Drop Rating | |
|
IP65 |
IK08 | |
|
System |
Further Development |
Language |
|
API & SDK will be provided. |
Multiple Languages (English by Default) |
|
|
Update Time |
Update Method |
|
|
≤ 2.5s |
Via USB Flash Disk， Android demo app |
|
| Operating System |
Android 7.1 |
|
|
DDR |
1GB |
|
|
EMMC |
8GB |
|
